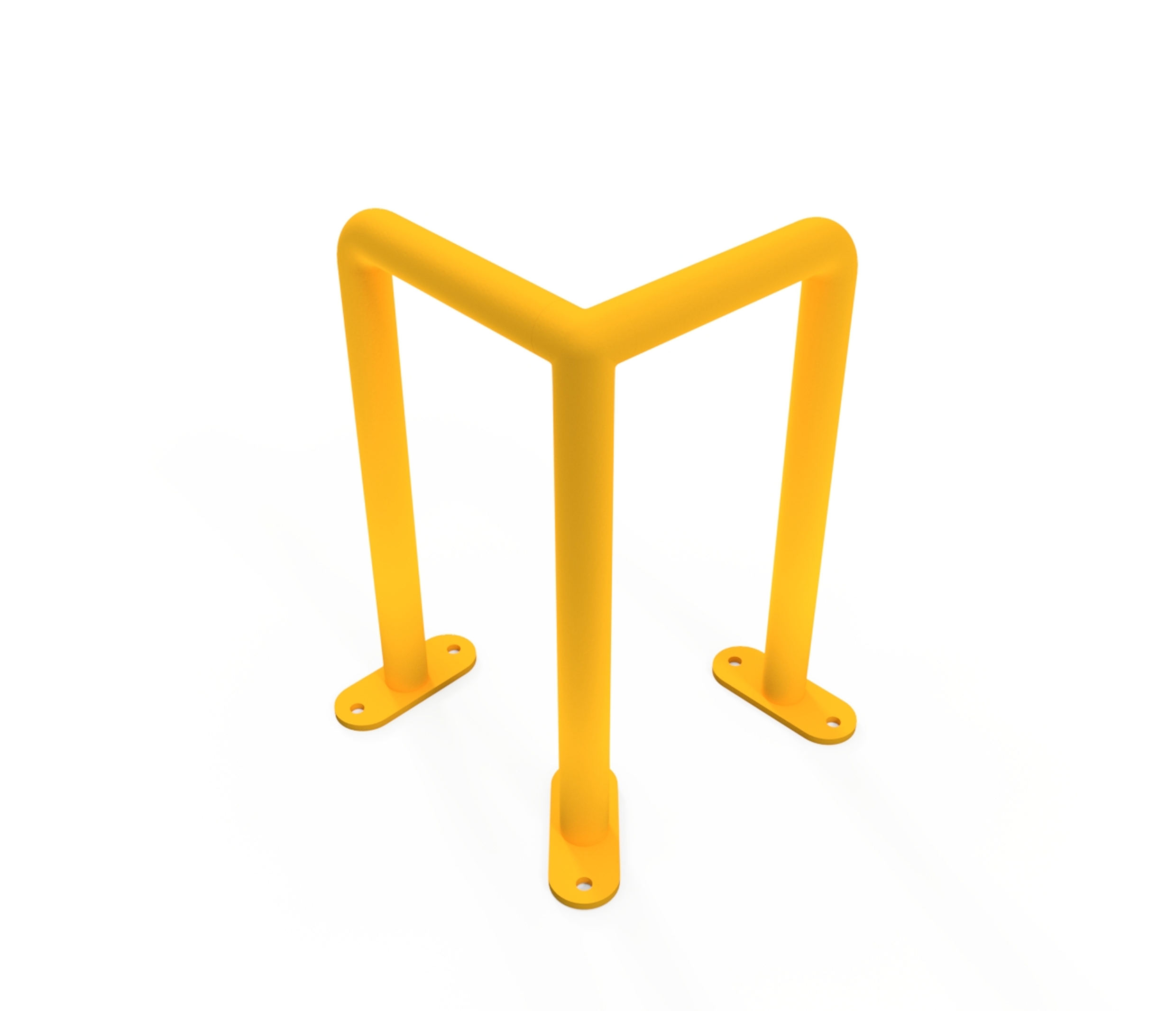

Light-Duty Protection Fender 0.3 x 0.3 x 0.5m
Light-duty protection fender designed to protect electrical cabinets, machinery and technical equipment from accidental contact and low-energy impacts. Manufactured from AISI 316 stainless steel and finished in high-visibility RAL 1003 Signal Yellow powder coating. Suitable for indoor and outdoor use.
240,00 € +KM
- Kirjeldus
- Technical Specifications
- Performance and Application
- Maintenance Information
- Packaging and Delivery
The Light-Duty Protection Fender provides a simple and durable first line of protection for electrical cabinets, machinery, technical equipment and other installations exposed to accidental contact or low-energy impacts.
The fender is manufactured from Ø42.4 × 2 mm AISI 316 stainless steel tube and finished with a highly visible RAL 1003 Signal Yellow powder coating. The stainless steel base material provides excellent corrosion resistance, making the product suitable for both indoor and outdoor environments.
Its compact three-leg construction creates a protective zone around equipment while requiring minimal floor space. The fender is intended for locations where increased visibility and protection against accidental impact are required, without the need for a heavy-duty vehicle collision barrier.

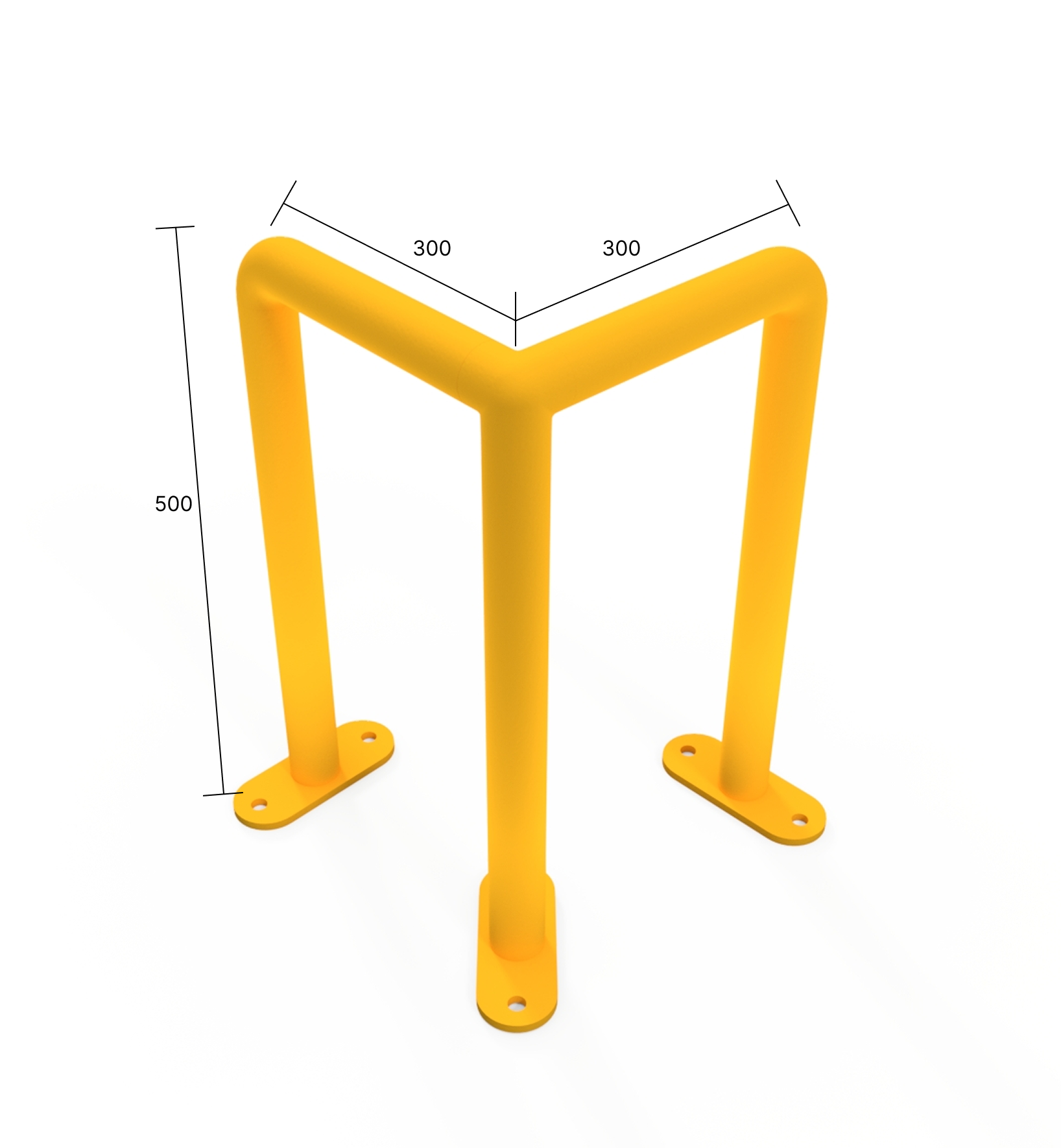

- Overall dimensions: 300 × 300 × 500 mm
- Main profile: CHS Ø42.4 × 2 mm
- Material: AISI 316 stainless steel
- Fittings: AISI 316
- Anchors: A4 stainless steel, uncoated
- Rivets: A4 stainless steel, uncoated
- Finish: Powder coated
- Colour: RAL 1003 Signal Yellow
- Gloss level: 75%
- Installation: Surface mounted
The protection fender is designed for light-duty applications where electrical cabinets, machinery or other technical installations require protection from accidental contact and low-energy impacts.
Typical applications include:
- Electrical cabinets
- Control cabinets
- Technical equipment
- Machinery
- Building service installations
- Equipment located near pedestrian or material-handling routes
Structural performance
Design resistance of a single support column:
- Shear resistance, VRd: 1.45 kN
- Bending moment resistance, MRd: 0.725 kNm
Important: The product is intended as a light-duty protective fender and is not classified or tested as a vehicle crash barrier. The stated values describe the structural design resistance of a single support column and should not be interpreted as a certified dynamic impact rating.
The fender is manufactured primarily from AISI 316 stainless steel, providing high corrosion resistance and low maintenance requirements.
For long-term performance:
- Inspect the fender periodically for mechanical damage or deformation
- Check anchors and fixing points for secure attachment
- Inspect the powder-coated surface for damage
- Clean dirt and deposits using water and a mild, non-abrasive detergent
- Avoid abrasive tools or aggressive chemicals that may damage the powder-coated surface
- Repair significant coating damage where necessary to maintain the appearance of the product
The frequency of inspection should be adjusted according to the operating environment and the likelihood of accidental impacts.
The protection fender is supplied ready for installation.
Due to its compact dimensions, the product can be efficiently packed and transported together with other Innore products.
- Suitable for pallet or parcel shipment depending on order quantity
- Stainless steel fixing components available according to the specified installation solution
- Multiple units can be combined in one shipment
- Delivery terms and lead time are confirmed with the order
- Estimated delivery time: 5 weeks
For project quantities or special requirements, please contact Innore for a quotation.
